SVEX-151-Z Explosive-proof Monitor
, , ,

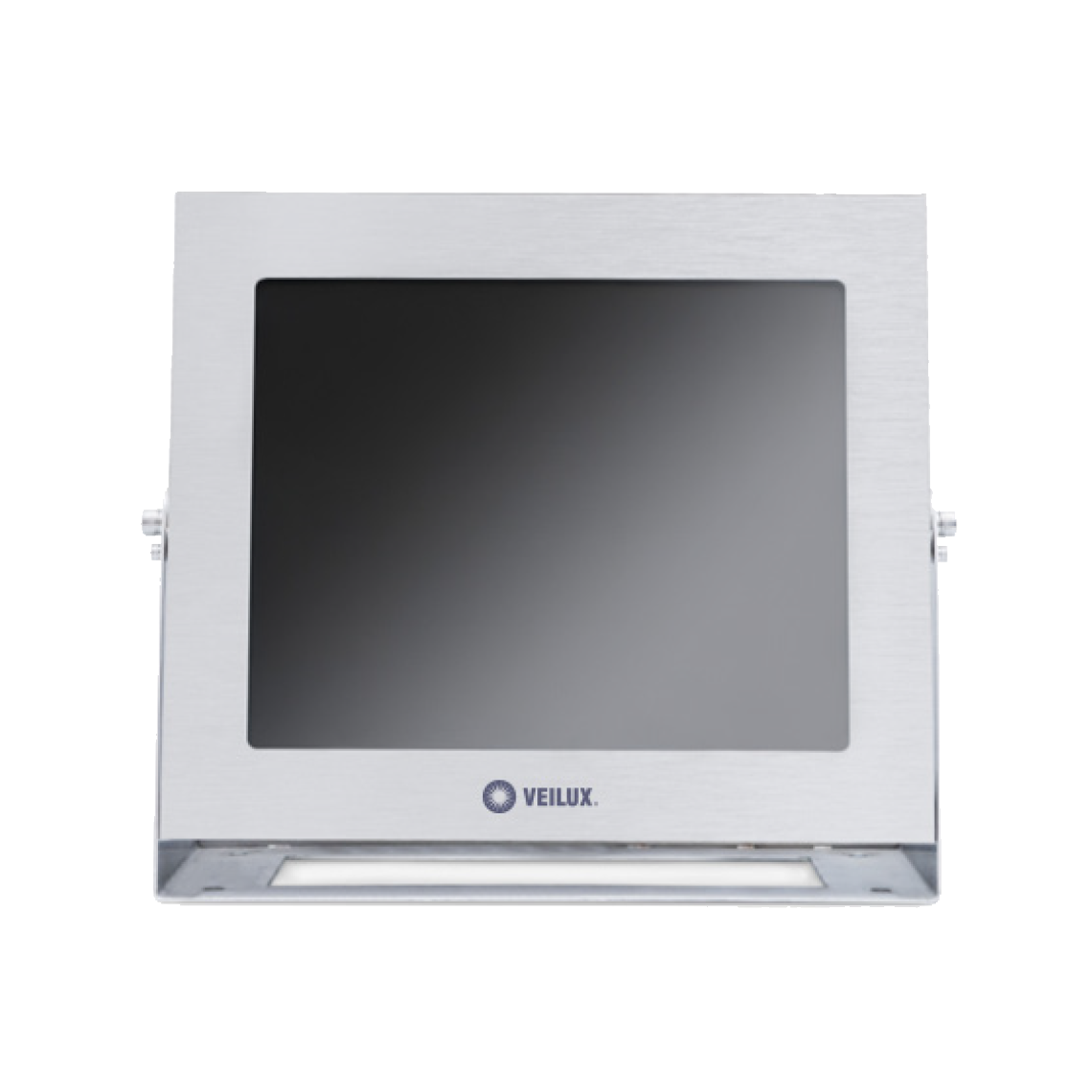

Veilux SVEX-151-Z 15″ inch Explosion Proof Monitor

  • 15″ inch monitor for Ex-proof or High Corrosion Areas
  • Quality LCD Display
  • Composite Video Signal Input
  • Available in 304 or 316L Stainless Steel
  • IP66

Note: This is a sp0ecial order item. Allow 4-6 weeks for delivery.

The SVEX-151-Z Explosion Proof Monitor features a 15-inch LCD scree capable of displaying footage in 1024 x 768 resolution. Additionally, the monitor incorporates IP66 weather resistance for safe outdoor use and installation in wet environments. The unit can handle 100VAC-220VAC voltage. Further, the device has a VGA port for connection and a special steel glass window for durability.

This item is available in 304 and 316L Stainless Steel.

Features:

  • Designed for use in Ex-proof or High Corrosion Areas
  • Quality LCD Display
  • Compact Design
  • Easy Transport
  • Adjustable Watching Angle
  • IP68
  • Indoor & Outdoor Installation
  • Avoid Rain Wash



Note: This is a sp0ecial order item. Allow 4-6 weeks for delivery.

SKU: SVEX-151-Z Categories: , , , Tags: , , , , ,
Weight 77.2 lbs
Dimensions 17.4 × 7.9 × 13.7 in
Accessory Type

Materials

CERTIFICATE
Certificate Mark Exd II B T6 Gb / Ex tD A21 IP68 T80°C
Certificate No CNEx19.0326
Standards Q/320412ZAF014-2018
MECHANICAL
Housing Carbon steel, Stainless steel 304 or 316L
IP IP68
Cable thread hole 4pcs G3/4 or NPT3/4 or M25x1.5
ELECTRICAL
Voltage AC100-240V
Power 50W
Surge Protect Optional, TVS6000V surge protect
AMBIENT
Ambient temperature -25°C to +60°C
Air pressure 80Kpa to 106Kpa
Relative Humidity ≤95% (no condensation)
AMBIENT
Screen TFT-LCD, 15inch
Resolution 1024 x 768
Brightness 220 nits
Contrast 700:1
Response Time 8/4 (Tr/Td) ms
Line Frequency 31.5-60KHz
Field Frequency 56-75Hz, Flick-free
View Degree Horizontal 176°
Connector Port VGA or BNC, HDMI
Develop port (optional) USB, Ethernet, RS485
GENERAL
Cable integrated cable
Size 441 x 200 x 348 (mm)
Weight 35kg
Mounted desk
