Explosion Proof, Security Cameras

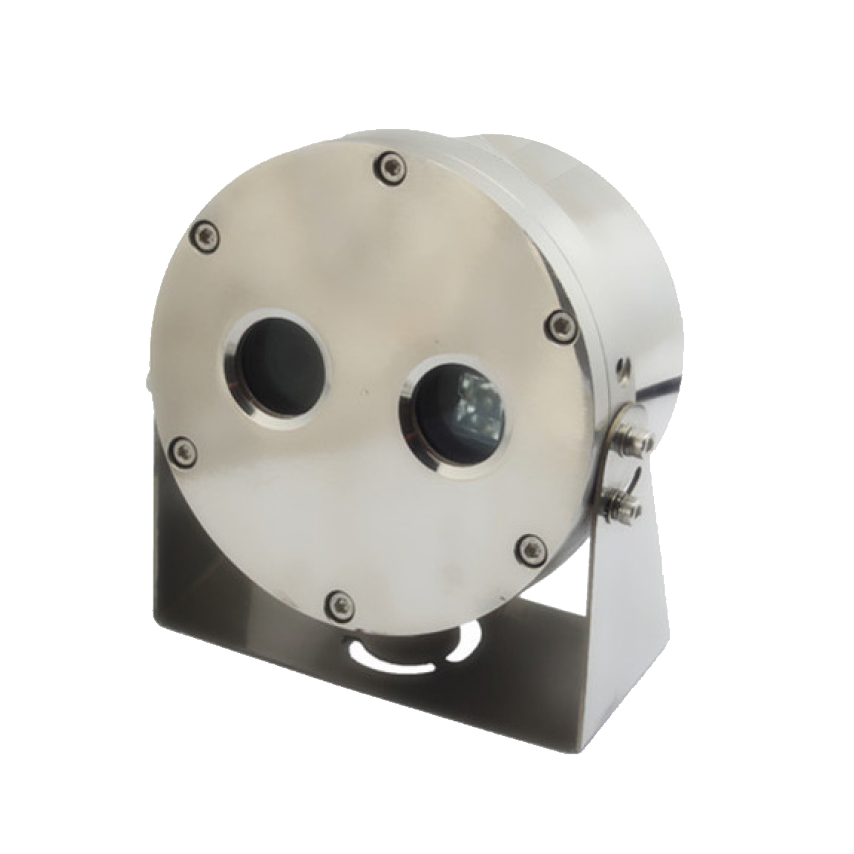

Veilux SVEX-B100-AHD-4MM Explosion Proof Smart CCTV Camera W/Light
- Stainless steel 304 or 316L
- Optional electropolished or corrosion resistant paint finish
- Enclosure Protection: IP68
- Includes lights for night vision: 0-30m distance
- Application: Oil tank, dangerous goods vehicle, marine vessel
This is a special order item. Allow 4-6 weeks for delivery.
The Veilux SVEX-B100-AHD-4MM Explosion Proof Camera features a 2MP lens capable of recording footage in 1956 x 1266 resolution. Additionally, the surveillance camera incorporates Smart IR to capture clear footage at nighttime and during low lighting conditions. An IP68 rating allows for safe outdoor use or installation in wet environments. Further, the security camera operates over a DC12V power supply for a dependable connection.
Features:
- Stainless steel 304 or 316L
- Optional electropolished or corrosion resistant paint finish
- Enclosure Protection: IP68
- Exd II CT6 Gb/ Ex tD A21 IP68 T80°C
- Power input: DC12V power supply
- Includes lights for night vision: 0-30m distance
- Application: Oil tank, dangerous goods vehicle, marine vessel
This is a special order item. Allow 4-6 weeks for delivery.
| Weight | 1.8 lbs |
|---|---|
| Dimensions | 6.6 × 5.9 × 5.8 in |
| Model | |
| Atmospheric Pressure | 80KPa~110Kpa |
| Ambient Temperature | –20°C~+60°C |
| Relative Humidity | ≤95% (+25°C) |
| Ex-Proof Mark | Exd II CT6 Gb/ Ex tD A21 IP68 T80°C |
| Explosion Proof Certified | CNEx 16.2526 |
| Ingress Protection | IP68 |
| Housing Material | Stainless Steel 304 or 316L |
| Image Sensor | 2.0 Mega Progressive Scan CMOS |
| Signal | PAL |
| Effective Pixel | 1956 x 1266 |
| Min. Illumination | 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter | 1/25 sec to 1/50,000 sec |
| Lens | 3.6mm (6mm optional) |
| Lens Mount | M12 |
| Day & Night | IR cut filter with auto switch |
| Horizontal Resolution | 1100TVL |
| Video Output | 1 Analog HD output (HD-TVI standard) |
| S/N Rate | above 62 dB |
| Auto Gain | Lower/ middle/ high/ off |
| Color | Color/ B&W / IR |
| White Balance | auto/ manual |
| Private Protect | on/off, 8 zones |
| Move Detection | on/off, 4 zones |
| Exposure | total exposure/ wide balance |
| 3D Noise | lower/ middle/ high/ off |
| Function | SMART IR contrast, sharpness, saturation, mirror, zoom |
| Light Night Vision | 0-30m |
| Voltage Input | DC12V |
| Power Consumption | 5W Max |
| Cable Output | Integrated cable, 2m long |
| Cable Gland | 1pcs G3/4 |
| Overall Dimension | 168 x 150 x 148 (L x W x H) |
| Net Weight | 4.3 kg |
| Material | Stainless steel 304 or 316L |
| Max Loading | 20kg |
| Weight | 1.8kg |
