Veilux Explosion Proof Housing Customized
, ,

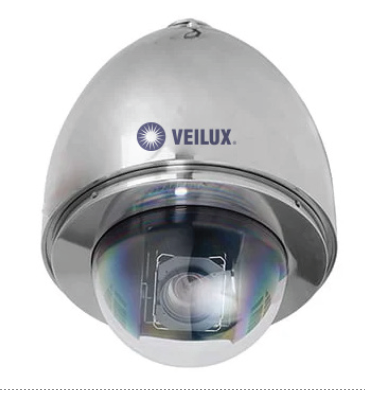

Veilux SVEX-EX-CD Explosion Proof Dome Housing

Availability:

Out of stock
  • Available in 304 or 316L Stainless steel
  • Dome housing
  • Operating temperature range from -30 °C to 70 °C (-22 °F to 158 °F)
  • Ex d IIC T6 Gb explosion-proof marking
  • Outlet Hole Thread Size G-1/2-inch

The Veilux SVEX-EX-CD Explosion Proof Dome Housing features 304 stainless steel construction for installation in highly corrosive environments. Additionally, the surveillance camera is IP68-rated weather resistant up to continuous submersion for safe installation outdoors and use in wet environments. The device has an operating temperature range from -30 °C to 70 °C (-22 °F to 158 °F). Further, the security camera incorporates an Ex d IIC T6 Gb explosion-proof marking.

Features

  • Available in 304 or 316L Stainless steel
  • Dome housing
  • Operating temperature range from -30 °C to 70 °C (-22 °F to 158 °F)
  • Ex d IIC T6 Gb explosion-proof marking
  • Outlet Hole Thread Size G-1/2-inch
SKU: SVEX-EX-CD Categories: , , Tags: , ,
Weight 11 lbs
Accessory Type

IP Rating

IR Lighting Distance

Materials

Type Dome housing
Atmospheric Pressure 80 kPa to 106 kPa (11.6 PSI to 15.37 PSI)
Operating Ambient Temperature -30 °C to 70 °C (-22 °F to 158 °F)
Relative Humidity 5 % to 95 % non-condensing
Protection Rating Ex d IIC T6 Gb explosion-proof marking IP68, NEMA-6P enclosure rating
Outlet Hole Thread Size G-1/2-inch
Dimensions (Ø × H) 240 mm × 357 mm (9.4 in × 14.1 in)
Internal Usable Size (Ø × H) 176 mm × 195 mm (6.9 in × 7.7 in)
Window Viewing 87 mm (3.4 in)
Weight 11 kg (24.3 lb)

SVEX-EX-CD Spec Sheet
