SVEX-FLEXTUBE Explosion Proof Flexibility Tube
Availability:
Out of stock
- High pressure resistant rubber tube, engineered for extended wear and tear
- Good flammation, oil & corrosion resistance
- For indoors & outdoor use
- Easy installation & maintenance
*This is a special order item. Allow 4-6 weeks for delivery.

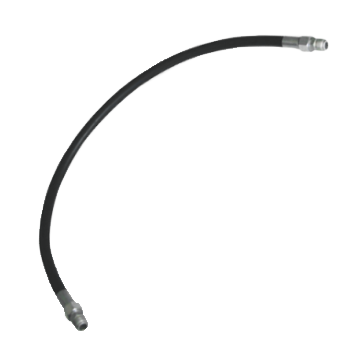

The Veilux SVEX-FLEXTUBE Explosion-proof flexible Tube is engineered for ex-proof electrical equipment and can be used in place of rigid conduit or steel piping which can be difficult to bend.
Features:
- High pressure resistant rubber tube, engineered for extended wear and tear
- Good flammation, oil & corrosion resistance
- For indoors & outdoor use
- Easy installation & maintenance
*This is a special order item. Allow 4-6 weeks for delivery.
| Weight | 0.5 lbs |
|---|---|
| Accessory Type |
| ITEM | SVEX-FLEXTUBE |
| Ex-marking | Exd I / II |
| Certificate | CNEx04.1307 |
| License | XK06-123-00251 |
TECHNICAL
| Material | Rubber Tube Inside w/ Steel Knit, Two Heads w/ Galvanized Screw Joints |
| IP | IP54 |
AVAILABLE SIZES
| Type | Inner Dia. (mm) | Outer Dia. (mm) | Rubber Thickness (mm) | Steel Net Dia. (mm) | Min Bend Dia. (mm) | Screw Joint Type | Total Length (m) | ||
| Inner | Out | Size | Accuracy | ||||||
| SVEX-FLEXTUBE-1 | 13 | 23 | >1.5 | >1.0 | 20.0 | ±0.8 | 190 | G-3/4” | 1.0 |
| SVEX-FLEXTUBE-1.5 | 13 | 23 | >1.5 | >1.0 | 20.0 | ±0.8 | 190 | G-3/4” | 1.5 |
| SVEX-FLEXTUBE-2 | 13 | 23 | >1.5 | >1.0 | 20.0 | ±0.8 | 190 | G-3/4” | 2.0 |
| SVEX-FLEXTUBE-5 | 13 | 23 | >1.5 | >1.0 | 20.0 | ±0.8 | 190 | G-3/4” | 1.0 |
| SVEX-FLEXTUBE-15 | 13 | 23 | >1.5 | >1.0 | 20.0 | ±0.8 | 190 | G-3/4” | 1.5 |
| SVEX-FLEXTUBE-20 | 13 | 23 | >1.5 | >1.0 | 20.0 | ±0.8 | 190 | G-3/4” | 2.0 |
