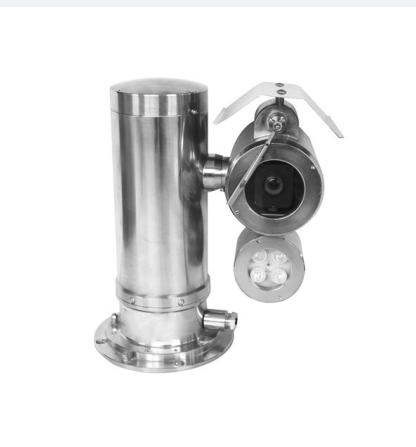

Veilux SVEX-HIR1-S Explosion Proof PTZ
, , ,

Veilux SVEX-HIR1-S 2MP Anti-corrosion Weatherproof PTZ Camera with IR

Availability:

Out of stock
  • Stainless steel 304 or 316L Housing
  • H 264 main profile / MJPEG
  • ONVIF CGI GB/T28181 PISA
  • 20X / 30X Optical Zoom
  • Wiper
  • IP68

Note: This is a special order item. It may take 4-6 weeks for delivery

The Veilux SVEX-HIR1-S  Anti-corrosion Weatherproof Stainless Steel PTZ Camera features a 20x or 30x optical zoom lens. Additionally, the surveillance camera utilizes H.264 and MJPEG compression to efficiently transmit and store data by reducing bandwidth. A 304 or 316L stainless steel housing makes this unit perfect for highly corrosive environments. Further, the security camera incorporates either 2-channel or 7-channel alarm input. An IP68 rating makes the device weatherproof for safe outdoor use or installation in wet environments. IR capabilities provide clear footage at nighttime and during low lighting conditions.

Features:

  • Stainless steel 304 or 316L Housing
  • 2MP Resolution
  • Horizontal: 360°; Vertical: -90° to 90°
  • 20X/30X optical zoom
  • Lights up to 100m
  • ONVIF CGI GB/T28181 PISA
  • Wiper
  • IP68
SKU: SVEX-HIR1-S Categories: , , , Tags: , , , , , , , ,
Weight 24.5 lbs
Dimensions 19.8 × 11.5 × 17.4 in
Camera Type

IP Rating

Lens Size

4.7 – 94mm
IR Lighting Distance

Materials

Specifications:

MECHANICAL
Housing Stainless Steel 304 or 316L
IP IP68
Cable Thread Hole 1PC G3/4 or NPT3/4
Wiper Yes
ELECTRICAL
Voltage AC100V ~ AC240V or AC24V
Power 50W/70W (with thermostat)
AMBIENT
Ambient Temperature -25°C to 60°C
Air Pressure 80Kpa to 106Kpa
Relative Humidity ≤95% (no condensation)
LIGHTS
Light Distance 100m
Light Control Supported
PAN AND TILT
Horizontal 360°
Horizontal Speed 0.1° – 45°/s
Vertical -90° to 90°
Cruise Scan Supported
Keep Watch Supported
Presets 64/128/255/300
Resume Function Supported
Auto Cruise Supported
Auto Scan Supported
NETWORK
Network Interface 1pcs of RJ45, support 10M/100M/1000M
Video Compression H.264 main profile / MJPEG
Audio Compression G.722.1/ G.711-a law/ G7.11-u law/MP2L2/G.726
Voice Intercom Supported
Stream Support three streams


Internet Protocol

 IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Time Display Supported
Standard ONVIF, CGI, GB/T28181, PISA
IE browser Support IE®7 or above, Google®, Firefox®, Apple®
Security Password protection, Multiple access control
CAMERA
Image Sensor 1/2.8″ interline-transfer CCD
Effective Pixels 2MP
Lens 4.7 – 94mm (20X), 4.5 – 135mm (30X)
Min. Illumination Color 0.05Lux B/W: 0.01Lux
Day and Night Auto/Color/BW
S/N Ratio >52dB (AGC off)
Gain Off/Lower/Higher


White Balance

 Auto/Manual/Auto tracking white balance/Indoor/ Outdoor/Sodium Lamp/Fluorescent Lamp
3D DNR Support
BLC On/Off


Image Setting

 Mirror, Saturation, Brightness, Contrast, Sharpness adjustable
Optical Zoom 20X/30X
GENERAL
Cable Integrated Cable
Size 502 x 292 x 443 (mm)
Weight 24.5 kg
Mounted Wall, Pole

SVEX-HIR1-S Spec Sheet

Download
