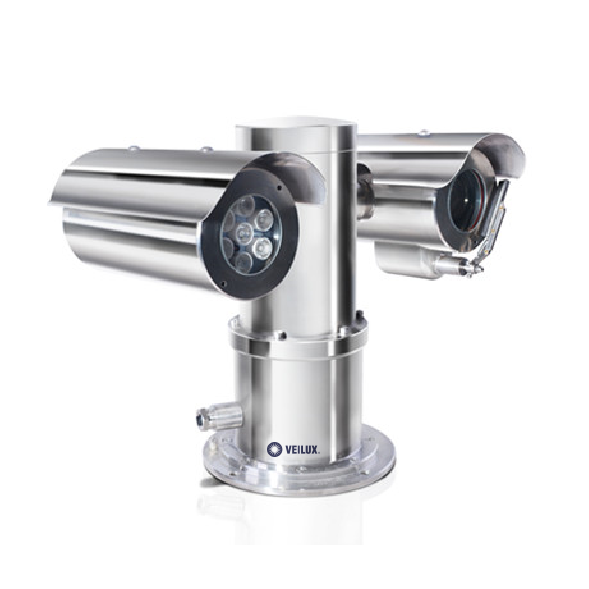

Veilux Explosion Proof Positioning Unit W/ Built-in Thermal Camera

Availability:

Out of stock
  • 304 or 316L Stainless steel construction
  • Highest protection: IP68
  • Intelligent telephoto speed limits
  • 360° Horizontal Auto tracking
  • ±90° Vertical rotating
  • 128 points patrol preset
  • Germanium glass also available

This is a special order item. Allow 4-6 weeks for delivery.



The Veilux Explosion Proof Positioning Unit with Built-in Thermal Camera features a progressive scan CMOS with a 30x optical zoom lens capable of recording footage in 1920 x 1080 resolution. Additionally, the surveillance camera incorporates a 316L grade stainless steel housing for dangerous locations or highly corrosive environments. Pan and tilt, as well as 360° auto tracking help to ensure you never miss a suspicious event. Further, the device adopts a stepping motor and worn gear motor, and the sun-shield protects the housing from the sunlight, heat and dirt.

Features:

  • 304/316L Stainless steel construction
  • Highest protection: IP68
  • Double ex-proof marking: EXd & DIP
  • Wide voltage: AC100-240V
  • Stepping motor & worn gear motor
  • Intelligent telephoto speed limits
  • 360° Horizontal Auto tracking
  • ±90° Vertical rotating
  • 128 points patrol preset
  • Ge glass for thermal imaging cameras available

This is a special order item. Allow 4-6 weeks for delivery.

SKU: SVEX-HIR7-Thermal-2M30X-XXXXX-ZN Categories: , , , Tags: , , , , , , , ,
Weight 26.4 lbs
Camera Type

,

IP Rating

IR Lighting Distance

Certificate
Certificate Mark Exd II C T6 GB/DIP A20 TA T6
Certificate No CNEx13 3114
Standards Q/320412 ZAF046-2013
Mechanical
Housing Stainless steel 304 or 316L
IP IP68
Cable thread hole 1pcs G3/4 or NPT3/4
Sun-shield yes
Electrical
Voltage 100~240 VAC
Power 50W /70W (with thermostat)
Surge Protect Optional
Optical Fiber output Multi mode or signal mode (Optional)
Ambient
Ambient temperature -25 to +60℃
Air pressure 80Kpa to 106Kpa
Relative Humidity <95%(no condensation)
Assistant
Communication support analog video output/ IP Output
485 Communication Support Pelco-D Pelco-P
Communicate Rate 2400 to 19200bps
Pan & Tilt
Horizontal 360°
Horizontal speed 01-45°/s
Vertical -90 to +90°
Cruise Scan Support
Keep watch Support
Preset 64/128/255/300
Resume function Support
Auto Cruise Support
Auto Scan Support
Optional Alarm
Alarm Input 2-channel/ 7-channel
Alarm Output 1-channel action with alarm
Intelligent Alarm Audio detective move detective video shield network inte
Optional Audio
Audio Input Audio input (LINE input MIC input) audio peak:2-2 4Vp-p
Audio Output Line-level impedance 600Ω
Network
Network Interface 1pcs of RJ45 support 10M/100M/1000M
Video Compression H 264 main profile / MJPEG
Audio Compression G 722 1/ G 711-a law/ G7 11-u law/MP2L2/G 726
Voice Intercom Support
Stream Support three streams
Internet Protocol IPv4/IPv6 HTTP HTTPS 802 1x Qos FTP SMTP UPnP SNMP
Time Display Support
Standard ONVIF CGI GB/T28181 PISA
IE browser Support IE7 or above Google Firefox Apple
Security Password protection Multiple access control
Camera
Effective pixel 2MP
Lens 4.5~162mm 36x optical
Aperture Range F1 6-F44
Angle of view 65 1-2 34 degree (wide -tele)
Min Illumination Color 0 05Lux B/W: 0 01Lux
Day & night Auto/ Color/ BW
S/N ratio > 50dB
Gain off/ lower/ higher
Digital Zoom 12X
White Balance Auto/ Manual/ Auto tracking white balance/ indoor/outdoor
3D DNR Support
BLC ON/OFF
Image setting Mirror Saturation Brightness Contrast Adjustable Sharpness
General
Cable integrated cable
Size 316*285*358mm
Weight 23kg
Mounted wall pole
Wall bracket SVEX-1301ZN-WM

SVEX-HIR7-Thermal-2M30X-XXXXX-ZN Spec Sheet

Download
