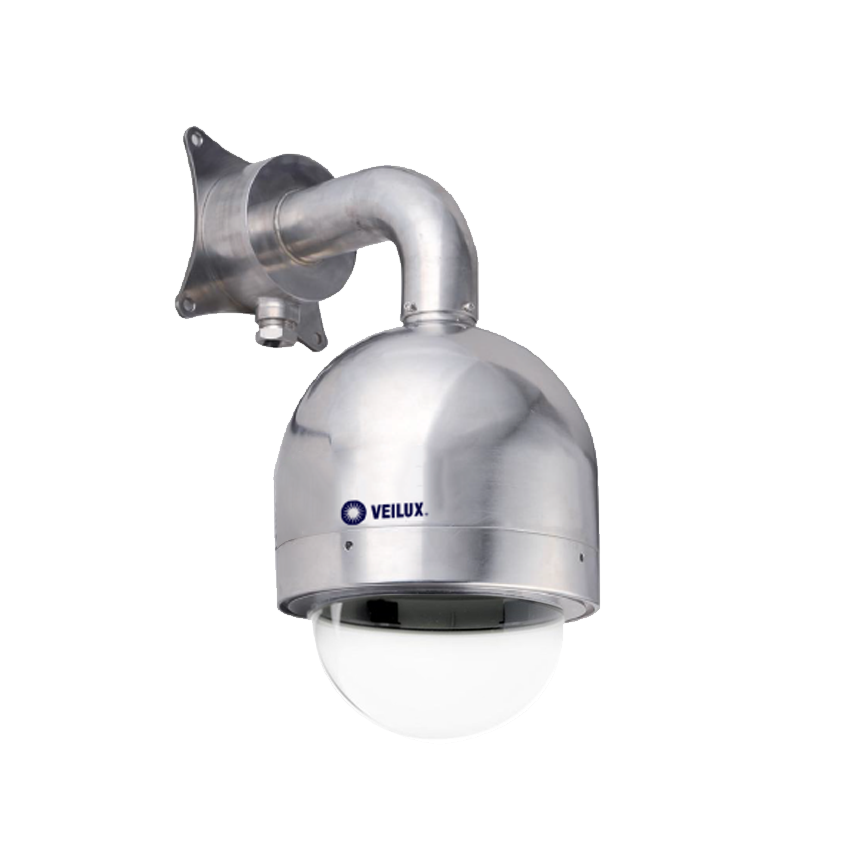

SVEX-HQ30 EXPLOSION PROOF HIGH SPEED DOME Housing
, ,

SVEX-HQ30-Z Explosion-proof High Speed Dome Housing Only

  • Stainless steel 304 or 316L
  • Optional electroplated or corrosion resistant paint finish
  • IP68, dust tight, protect against continuous immersion in water
  • Suitable for high speed dome cameras
  • Indoor, outdoor installation
  • Designed for highly corrosive areas

Note: This is a Special Order Product. Please allow 6-8 weeks for delivery.

The Veilux SVEX-HQ30-Z V-Armor Series Explosion-Proof High Speed Dome Housing is made of stainless steel 304 or 316L with the options of electro-polished or corrosion resistant paint finish. This housing is rated IP68 weather resistant and is ready for indoor and outdoor installation.

Features:

  • Stainless steel 304 or 316L
  • Optional electroplated or corrosion resistant paint finish
  • IP68, dust tight, protect against continuous immersion in water
  • Suitable for high speed dome cameras
  • Indoor, outdoor installation
  • Designed specifically for highly corrosive areas

Note: This is a Special Order Product. Please allow 6-8 weeks for delivery.

SKU: SVEX-HQ30-Z Categories: , , Tags: , , , , , , , , , , , ,
Weight 25.4 lbs
Dimensions 9.84 × 9.84 × 13.85 in
Accessory Type

Materials

PTZ Speed

Variable speed: 0.1° ~ 40°/s
IP Rating

CERTIFICATIONS
Certificate Mark Ex d IIC T6 Gb/Ext DA21 IP68 T80°C
Certificate No CNEx15.2504X
Standards Q/320412 ZAF026-2015
MECHANICAL
Housing Stainless steel 304 or 316L
IP IP68
Cable thread hole 1pcs M28 x 1.5 to G3/4
Wiper No
ELECTRICAL
Voltage AC85V~AC265V or DC24Vor AC24V
Power 25W/35W (with thermostat)
Surge Protect Optional, TVS6000V surge protect
AMBIENT
Ambient temperature -25°C to 60°C
Air pressure 80Kpa to 106Kpa
Relative Humidity ≤95% (no condensation)
COMMUNICATION
Communication Supports analog video output
485 Communication Supports Pelco-D, Pelco-P
Communicate Rate 2400 to 19200bps
PAN AND TILT
Horizontal 360°
Speed Horizontal 0.1-300°/s, Vertical 0.1-250°/s
Vertical -90 to +0
Cruise Scan Support
Keep watch Support
Preset 64/128/255/300
Resume function Support
Auto Cruise Support
Auto Pattern Support
Auto Scan Support
GENERAL
Cable Integrated cable
Size 250 x 250 x 352 (mm)
Net Weight 11.5kg
Mounted Wall, pole
