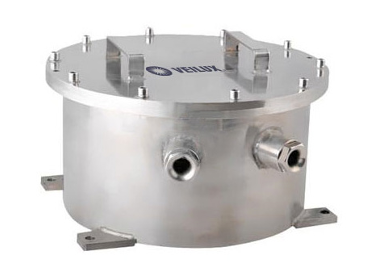

SVEX-JXD3 Explosion-proof Junction Box

Availability:

Out of stock
  • 316L stainless steel construction
  • Stainless steel 304 or 316L
  • Easy to install and maintain
  • ATEX & IECEx dual explosion-proof certification
  • Applicable for Gas Zone 1, Zone 2,Class II A, IIB, IIC, T1-T6 group) Dust Zone 21, 22

Note: This is a special order item. It may take 4-6 weeks for delivery

The Veilux SVEX-JXD3 Explosion-Proof Junction Box is made of 304 stainless steel and is IP68 protected from continuous immersion in water. Additionally, the junction box incorporates 4x  G3/4 threaded holes for cable connections. The unit is perfect for installation in outdoor, petrochemical and highly corrosive environments. Further, the device can safely operate in temperatures ranging from -25°C-60°C (-13°F to 140°F).

Features

  • 316L stainless steel construction
  • Stainless steel 304 or 316L
  • Indoor and outdoor
  • Easy to install and maintain
  • ATEX & IECEx dual explosion-proof certification
  • Applicable for Gas Zone 1, Zone 2,Class II A, IIB, IIC, T1-T6 group) Dust Zone 21, 22                                                                          *This is a special order item. Allow 4-6 weeks for delivery.
SKU: SVEX-JXD3 Categories: , , , Tags: , , , , ,
Weight 29.1 lbs
Dimensions 16.25 × 16.25 × 15.6 in
Accessory Type

Materials

CERTIFICATE
Certificate Mark Ex II2G Ex db IIC T6 Gb, Ex II2D Ex tb IIC T80ºC Db
Certificate No. Presafe 17 ATEX 11327X, IECEx PRE 18.0010X
MECHANICAL
Housing Stainless steel 304 or 316L
IP Rating IP68
Zones Gas zone 1, 2 (IIA, IIB, IIC, T1-T6); dust zone 21, 22
Cable Thread Hole 4pcs M25 x 1.5, M27 x 1.25
ELECTRICAL
Power AC220V to 12V
Optical Fiber Receiver Signal mode fiber
Surge Protection Optional
GENERAL
Working Temperature -40 to +60ºC
Air Pressure 80Kpa to 110Kpa
Relative Humidity ≤95% (no condensation, 25ºC)
Overall Size (Diam x H) 413 x 397 x 183 (mm)
Inner Size (LxWxH) 230 x 230 x 120 (mm)
Weight 13.2kg

SVEX-JXD3 Spec Sheet

Download
