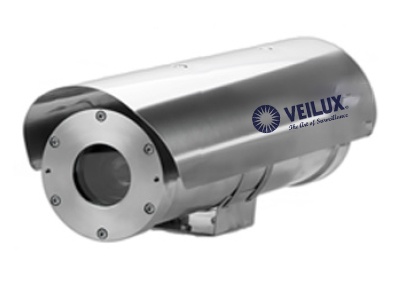

SVEX-T100-2M30X Explosion-proof Fixed with 2MP 30X Camera

  • ATEX, IECEx Certified
  • Applicable for Gas Zone 1, Zone 2, Class II A, IIB, IIC, T1-T6 group)
  • Dust Zone 21, 22.
  • Stainless steel 304 or 316L enclosure
  • Surface optional electro-polished or painting
  • Weatherproof IP68 (2m/2h)

This is a special order item. Allow 4-6 weeks for delivery.

SVEX-T100-2M30X Explosion-proof Fixed with 2MP 30X Camera

The classic explosion-proof camera, which can load various camera.The explosion proof camera can apply for Zone 1 and Zone 2 hazardous areas that explosive
mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exist, Zone 21 and Zone 22 hazardous areas that explosive dust may exist. It’s applicable for refining and chemical industry, oil extraction, gas production, fireworks production, grain production and storage, petrol station and so on.

Features:

  • ATEX, IECEx Certified
  • Applicable for Gas Zone 1, Zone 2, Class II A, IIB, IIC, T1-T6 group)
  • Dust Zone 21, 22.
  • Stainless steel 304 or 316L enclosure
  • Surface optional electro-polished or painting
  • Weatherproof IP68 (2m/2h)
  • Option voltage: AC100-240V or AC24V or DC24V or PoE++
  • Strong tempered glass, fit for hydrofluoric acid area
  • Intelligent window defroster design
  • Auto temperature adjust kit for aggressive area
  • High precision wiper , support user-defined
  • Fit for various brand cameras
  • Wall, pole, ceiling or corner mounted way



SKU: SVEX-T100-2M30X Categories: , , Tags: , , , , ,
Camera Type

Resolution

2MP
EX-PROOF MARKING




Certificate Mark

 without optical fibre version: CE2460 Ex II 2G Ex db IIC T6 Gb Ex II 2D Ex tb IIC T80 ºC Db

with optical fibre version:

Ex II 2G Ex db op or II C T6 Gb

Ex II 2D Ex tb op pr II C T80 ºC Db
Certificate Presafe 17 ATEX 11326X, IECEx PRE18.0012X
Standards IEC/EN60079
MECHANICAL
Housing Stainless steel 304 or 316L
Surface Optional electro-polish or painting
Ingress Protection IP68 (1.2m/ 45min)
Cable Thread Hole 2pcs M25×1.5 (or M27 x 1.25)
ELECTRICAL
Voltage AC100V~AC240V 50/60Hz or AC24V 50/60Hz DC24V or PoE++ (48 V d.c.)
Power ≤36W
Surge Protect Optional, TVS6000V surge protect
Optical Fiber output multi-mode single fiber or single mode single fibre Tx1310, Rx1550nm, FC connector
Optical Video signal 1-way video output
Optional network signal RJ45
Optical Audio 1-way input, 1-way output
Optical Alarm 2-way alarm input, 1-way alarm output
Address code: 0/1
Trail cable 2m integrated cable
AMBIENT
Ambient Temperature -40°C to +60°C with normal length

-40°C to +58°C with short enclosure/cylinder
Air Pressure 80Kpa to 110Kpa
Relative Humidity ≤95% (no condensation)
COMMUNICATION
Communication type RS485
Protocol Pelco-D, Pelco-P
Communicate Rate 2400~19200bps adjustable
485 Communication Support
CAMERA
Type 2MP 30X optical zoom camera
Sensor 1/2.8inch, 2.0 megapixel, progressive scan, CMOS
Lens 4.3-129mm, 30X optical
Zoom automatic focusing and motorized zoom lens
Iris Auto manual: F1.5~F3.4
Shutter Auto/manual, shutter time: 1/6~1/8000s
WDR 120dB


Min. Illumination

 0.005lux (F1.6, 50IRE, color) 0.0005lux (F1.6, 50IRE, B&W)
Day & Night IR-cut filter with auto switch (ICR)
Video Compression H.265, H.264
Frame Rate 1080P (1920×1080) Max 60fps
Video Stream Three streams
OSD Time OSD, customized OSD
Motion Detection support
Privacy Mask support
Edge Storage Support Micro SD, up to 128GB
Network Storage Dual-way iSCSI block storage
Protocols L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP, SNMP, SI
Compatiable Integration ONVIF2.4, GB/T28181
Digital Zoom 16x
GENERAL
Sun-shield Yes
Wiper No
Size (WxHxL) 524 x 179 x 208 (mm)
Net Weight 12.5kg
Compatible Mounts Wall, Pole, Corner

SVEX-T100-2M30X Spec Sheet

Download
