SVEX-T100D-2M30X
, ,

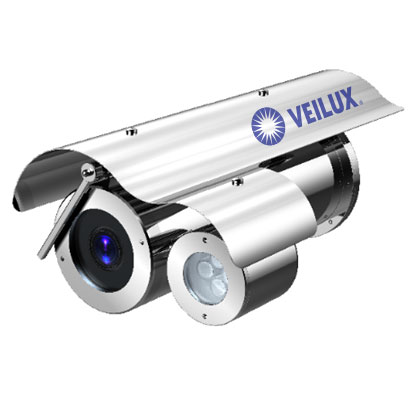

SVEX-T100D-2M30X Explosion-proof with IR light, wiper and 2MP 30X camera

  • ATEX, IECEx Certified;
  • Applicable for Gas Zone 1, Zone 2, Class II A, IIB, IIC, T1-T6 group), Dust Zone 21, 22.
  • Certified for the latest standards IEC/EN60079
  • Stainless steel 304 or 316L enclosure
  • Surface optional electro-polished or painting
  • Weatherproof IP68(2m/2h)

SVEX-T100D-2M30X Explosion-proof with IR light, wiper and 2MP 30X camera

The explosion proof camera can apply for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exist, Zone 21 and Zone 22 hazardous areas that explosive dust may exist. It’s applicable for refining and chemical industry, oil extraction, gas production, fireworks production, grain production and storage, petrol station and so on.

Features:

  • ATEX, IECEx Certified;
  • Applicable for Gas Zone 1, Zone 2, Class II A, IIB, IIC, T1-T6 group), Dust Zone 21, 22.
  • Certified for the latest standards IEC/EN60079
  • Stainless steel 304 or 316L enclosure
  • Surface optional electro-polished or painting
  • Weatherproof IP68(2m/2h)
  • Wide voltage input: AC100-240V or AC24V or DC24V or PoE++
  • Strong tempered glass, fit for hydrofluoric acid area
  • Intelligent window defroster design
  • Equipped with infrared light for night vision
  • Equipped with wiper to keep window clean
  • Auto temperature adjust kit for aggressive area
  • High precision wiper , support user-defined
  • Wall, pole, ceiling or corner mounted way
SKU: SVEX-T100D-2M30X Categories: , , Tags: , , , , , ,
EX-PROOF MARKING
Certificate Mark Ex II 2G Ex db op is IIC T6 Gb Ex2D Ex tb op is IIC T80 ºC Db
Certificate ATEX: Presafe 20 ATEX 45644X, IECEx: IECEx PRE20.0042X
MECHANICAL
Housing Stainless steel 304 or 316L
IP IP68 (2m/2h)
Cable Thread Hole 2pcs M25*1.5(standard) or M27*1.25
Sun-Shield Optional
Wiper Included
ELECTRICAL
Voltage AC100V~AC240V or DC24V or AC24V or POE++ (IEEE 802.3bt)
Power consumption ≤36W
Surge Protect Optional, TVS6000V surge protect
Optical Fiber output multi-mode single fiber or single mode single fibre Tx1310, Rx1550nm, FC connector
Optical Video signal 1-way video output
Optional network signal RJ45
Optical Audio 1-way input, 1-way output
Optical Alarm 2-way alarm input, 1-way alarm output
Address code: 0/1






Trail cable



2m integrated cable Option 1: power+CAT

Option 2: power+RS485+coxial cable

Option 3: power+CAT+audio+alarm+RS485+coaxial cable Option 4: power+CAT+audio+alarm+fiber cable
AMBIENT
Ambient temperature -40°C to +60°C
Air pressure 80Kpa to 110Kpa
Relative Humidity ≤95% (no condensation)
LIGHTS
Lights 100m night vision(single light) 200m night vision (double lights)
Light Wave Length 850nm
Lights Control Auto turn on/ off ,sync with camera day and night
Type 2MP 30X optical zoom camera
Sensor 1/2.8inch, 2.0 megapixel, progressive scan, CMOS
Lens 4.3-129mm, 30X optical
Zoom automatic focusing and motorized zoom lens
Iris Auto manual: F1.5~F3.4
Shutter Auto/manual, shutter time: 1/6~1/8000s
WDR 120dB
Day&Night IR-cut filter with auto switch (ICR)
Video Compression H.265, H.264
Frame Rate 1080P (1920×1080) Max 60fps
Video Stream Three stream
OSD Time OSD, customized OSD
Motion Detection Supported
Privacy Mask support
Edge Storage Support Micro SD, up to 128GB
Network Storage Dual-way iSCSI block storage
Protocols L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP, SNMP, SI
Compatiable Integration ONVIF2.4, GB/T28181
Digital Zoom 16x
GENERAL
Wiper system Control by RS485
Sunshade Optional
Cable Integrated cable
Size (LxWxH) 523 x 297 x 221 (mm)
Net Weight 15.5 kg
Compatible Mounts Wall, Pole, Corner

SVEX-T100D-2M30X Spec Sheet

Download
