SVEX-T600B Explosion Proof Camera Housing
, ,

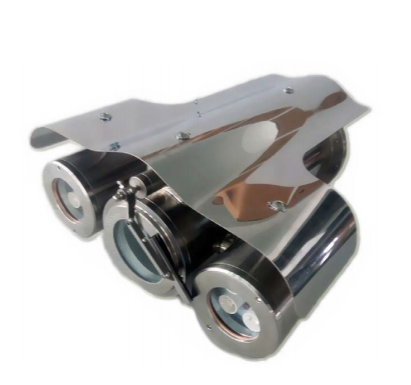

Veilux SVEX-T600B Explosion Proof Camera Housing with IR Lighting

  • Stainless steel 304 or 316L
  • IP68
  • Ambient temp: -25 to +60°C/ -45 to +80°C
  • Hazardous atmospheres, weather and vandal proof
  • Can operate in dusty or high-particulate environments
  • Explosion-proof Double IR enclosures

Note: This is a special order item and may take 6-8 weeks for delivery

The Veilux SVEX-T600B Explosion Proof Camera Housing is constructed using 304 or 316L stainless steel for durability and high corrosion resistance. Additionally, the camera housing is IP68 rated dust-tight and waterproof for safe outdoor use and installation in wet environments. Veilux manufactures a variety of enclosures including indoor, outdoor, explosion proof, dust-tight and high security models.



Note: This is a special order item and may take 6-8 weeks for delivery.

SKU: SVEX-T600B Categories: , , Tags: , , , , ,
Weight 29.8 lbs
Dimensions 18.1 × 14.6 × 8.1 in
Materials

IP Rating

IR Lighting Distance

, ,

Certificate
Certificate Mark Exd II C T6 Gb/ Ext D A21 IP68 T80 °C
Certificate No CNEx16 0708
Standards Q/320412ZAF032-2016
Mechanical
Housing Stainless steel 304 or 316L
IP IP68
Cable thread hole 2pcs G3/4 or NPT3/4
Sun-shield Yes
Electrical
Voltage
Power 15W/25W (with thermostat)
Surge Protect Optional TVS6000V surge protect
Optical Fiber output Optional multimode or single mode
Ambient
Ambient temperature -25 to + 60°C/ -45 to +80°C
Air pressure 80Kpa to 106Kpa
Relative Humidity <95%(no condensation)
Lights
Lights 0-20m 20-60m 60-100m infrared lights
Lights Control Support
Communication
Communication support analog video output/ IP Cameras
485 Communication Support Pelco-D Pelco-P
Communicate Rate 2400 to 19200bps
General
Wiper system Control by RS485
Sunshade Yes
Cable integrated cable
Outer Dimensions 459*371*205mm
Inner Dimensions 210*75*75mm
Weight 13 5kg
Mounted Wall pole
Wall bracket SVEX-M1

SVEX-T600B Spec Sheet

Download
