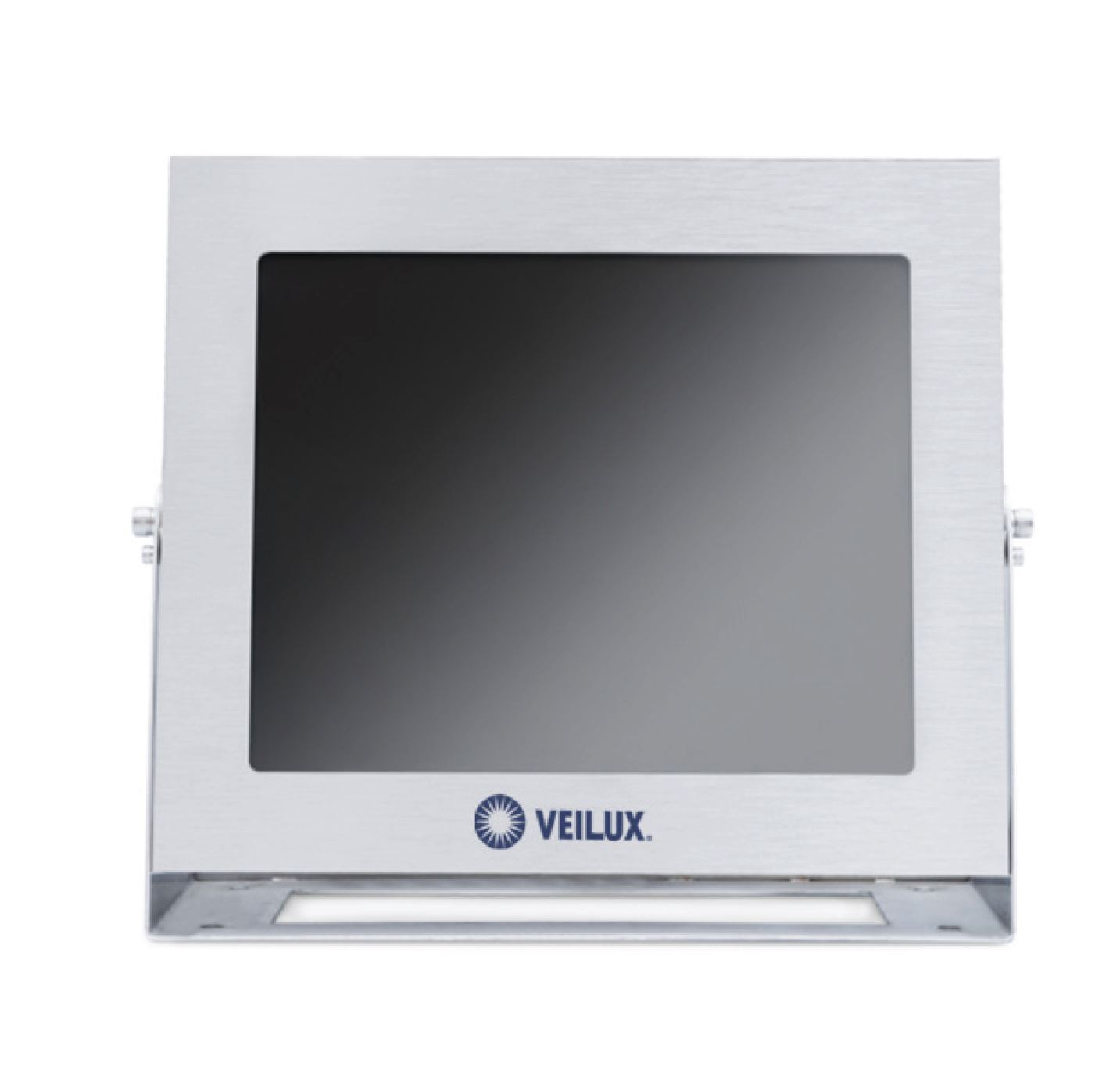

SVEX-XX1-Z Explosion-proof Monitor

Availability:

Out of stock
  • Available in 304 and 316L
  • Several sizes are available



Note: This is a special order item. Allow 4 to 6 weeks for delivery.

SVEX-XX1-Z Explosion-proof Monitor:

  • Available in 304 and 316L
  • Several sizes are available

Note: This is a special order item. Allow 4 to 6 weeks for delivery.

SKU: SVEX-XX1-Z Category: Tags: , , , , , , , ,
IP Rating

Materials

CERTIFICATE
Certificate Mark Ex d IIB T6 Gb / Ex tD A21 IP68 T80˚C
MECHANICAL
Housing Carbon steel, Stainless steel 304 or 316L
IP IP68
Cable Thread Hole 4pcs G3/4 or NPT3/4 or M25*1.5
ELECTRICAL
Voltage AC100-240V
Power 50W
Surge Protect Optional, TVS6000V surge protect
Video Input 1Vp-p Positive polarity, full TV signal 75Ω imbalance
AMBIENT
Ambient Temperature -40˚C to +60˚C
Air Pressure 80Kpa to 110Kpa
Relative Humidity ≤95% (no condensation)
Video System PAL/ NTSC
Panel Life 30,000 hours
View Degree (H/V) 170°/160°
Connector Port HDMI or VGA,or BNC, S-VHS, RGB, CVBS
Cable Integrated cable – 2m long
FUNCTION
Screen LED 15inch 17inch 19inch 21.5inch 22inch 24inch
Resolution 1024×768 1280×1024 1280×1024 1920×1080 1920×1080 1920×1080
Aspect Ratio 4:3 4:3 16:9 16:9 16:9 16:9
Size (mm) 445x223x408 475x230x429 545x199x4656 645x230x446 645x230x459 707x230x461
Weight 28kg 38kg 45kg 55kg 55kg 65kg
Brightness 220 nits 250cd/m2
Contrast 700:1 1000:1
Response 8/4 (Tr/Td) ms 5ms(G To G)

SVEX-XX1-Z Spec Sheet

Download
