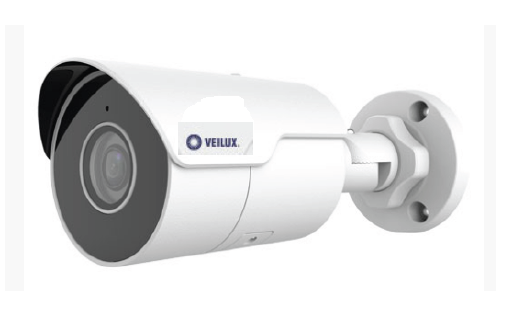

VBIP-5-UE-G 5MP Mini Fixed Bullet Network Camera

CAMERA

Sensor

1/2.7″, 5.0 megapixel, progressive scan, CMOS

Lens

[email protected]

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

4.0

60

24

12

6

Angle of View (H)

79.7°

Angle of View (V)

51.8°

Angle of View (D)

98.0°

Adjustment Angle

Pan: 0°~ 360°, Tilt: 0°~ 90°, Rotate: 0°~ 360°

Shutter

Auto/Manual, 1 ~ 1/100000s

Minimum Illumination

Color: 0.02 Lux (F2.0, AGC ON)

0 Lux with IR on

Digital Noise Reduction

2D/3D DNR

Day/Night

IR-cut filter with auto switch (ICR)

S/N

>52dB

IR Range

Up to 30m (98ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Defog

Digital Defog

WDR

D-WDR

VIDEO

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main Profile

Frame Rate

Main Stream: 5MP (2592 x 1944), Max 20fps; Sub Stream: 720P (1280 x 720), Max 20fps

Video Bit Rate

128 Kbps~16 Mbps

OSD

Up to 4 OSDs

Privacy Mask

Up to 8 areas

ROI

Up to 2 areas

Motion Detection

Up to 4 areas


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto

Digital Noise Reduction

2D/3D DNR
