Access Control, Ticketing and Access Control

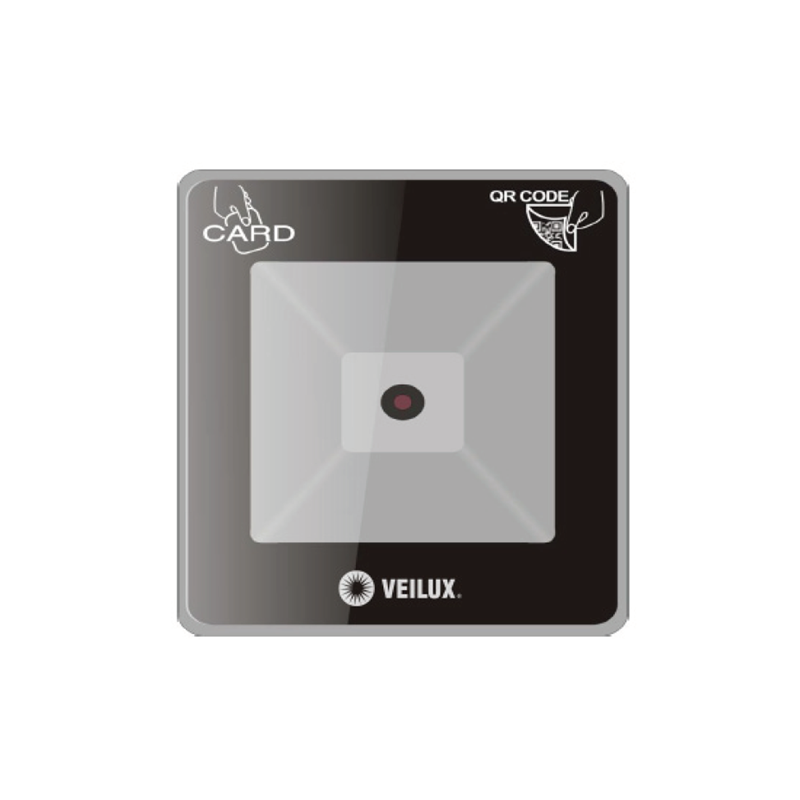

VI-301 QR Code & RFID Card Reader System
- Reading Mode: CMOS
- Reading Code: QR Code (On screen/paper)
- Reading accuracy: ≥ 5mil
- Reading Distance: 1~8cm
- Vertical Reading Angle: 360°
VI-301 QR Code & RFID Card Reader System.
Features
- Reading Mode: CMOS
- Reading Code: QR Code (On screen/paper)
- Reading accuracy: ≥ 5mil
- Reading Distance: 1~8cm
- Vertical Reading Angle: 360°
- Camera Reading Range: Up and down\left and right 80°
- Operating Voltage: DC 5~12V
- Communication Interface: Standard TTL, RS485, Wiegand 26/34 (output)
Specifications:
| Reading Mode | CMOS |
| Reading Code | QR Code (On screen/paper) |
| Reading Accuracy | ≥ 5mil |
| Reading Distance | 1~8cm |
| Vertical Reading Angle | 360° |
| Camera Reading Range | Up and down\left and right 80° |
| Operating Voltage | DC 5~12V |
| Communication Interface | Standard TTL, RS485, Wiegand 26/34 (output) |
| Included | Filling light, automatically fills light when dark |
| QR Code Recognition Time | Less than 0.5 seconds |
| Maximum Users | 20,000 |
| Unlock Signal | 1 set of normally open contacts, 1 set of normally closed contacts |
| Signal Input | 1 set of open-door buttons |
| Applet-supported number of IC card Binding QR Code |
20,000 |
| Card Reading Type | Mifare one (IC Card), Mobile Phone NFC, Second-generation ID card serial number |
| Card Reading Distance | 3 ~ 10cm |
| Card Reading Time | ≤0.3s |
| Dimensions | 92 x 74 x 55 (mm) |
| Successful Reading Notification | Buzzer |
