Explosion Proof Lighting

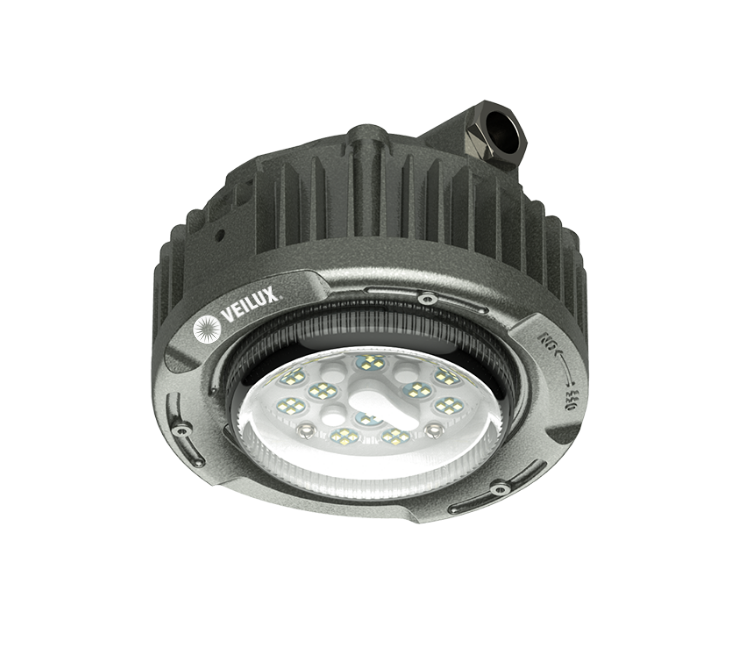

VL-EXS8230-XX 10/20W-45W Ex-proof Short Emergency Light
- Used in petroleum mining, oil refining, chemical & military industry, & other dangerous environments for general/operational lighting
- For Zone 1 & Zone 2 of explosive gas environment;
- Zone 21 & Zone 22 of flammable dust environment
Note: This is a special order item. Allow 4-6 weeks for delivery.
VL-EXS8230-XX 10/20W-45W Ex-proof Short Emergency Light
Features
- Configuration: Using imported new LED light source, the average service life is as long as 100,000 hours. The power supply adopts wide voltage processing, which can realize constant current output, has short circuit and over voltage protection functions, and greatly prolongs the service life of lamps and
- The radiator adopts an integrated streamlined structure, which can better increase the heat conduction. The radiator is arranged in an internal and external circular array to improve the heat dissipation
- Anti-glare: toughened glass cover (transparent and frosted two options), anti-impact, anti-glare, so that the light uniform and soft without shadows, transmittance up to 95% – 98%, suitable for all kinds of low-roof, platform, high- roof, high-roof and other places as fixed lighting.
- Protection: The protection level of the lamp body is IP66, and the anti-corrosion level can reach WF2. The surface of the lamp body will never corrode and
- Installation mode: Suspension ceiling, bending rod, vertical rod, top ceiling, U-shaped shock-proof bracket (angle adjustable) and other installation modes can be adopted as
- Inlet port: Series and parallel connection of lamps and lanterns can be realized by adopting double inlet
Models Available:
| MODEL | VOLTAGE |
| VL-EX8230SL-1020 | 10W-20W |
| VL-EX8230SL-30 | 30W |
| VL-EX8230SL-40 | 40W |
| VL-EX8230SL-45 | 45W |
Note: This is a special order item. Allow 4-6 weeks for delivery.
Specifications
| VIDEO INPUT | |
| Rated Voltage | AC220 V |
| Power | 10-45 W |
| Frequency | 50/60 Hz |
| Light Efficiency | 120 lm |
| Power Factor | >0.95 PF |
| Operating Temperature | -30~50 °C / -22~122 °F |
| Storage Temperature | -30~50 °C / -22~122 °F |
| Protection Level | IP66 |
| Lighting Angle | 110 ° |
| Light Source | LED |
| Correlate Color Temperature | 3000-6500 K |
| Color Rendering Index | ≥70 RA |
| LED Qty | 45 pcs |
| Base Specifications | CREE3030 |
| LED’S Operating Life | 100000 h |
| Start-Up Time | ≤0.2 s |
| Anticorrosion Grade | WF2 |
| Explosion Proof Grade | ExdIICT6W |
| Executive Standard | GB3836.1 / GB3836.2 |
| Weight | 2.5 kg / 5.5 lbs |
| Size | Ø 180 x 148 mm / Ø 7″ x 5.8″ in |
