VP-FDNC36X
, ,

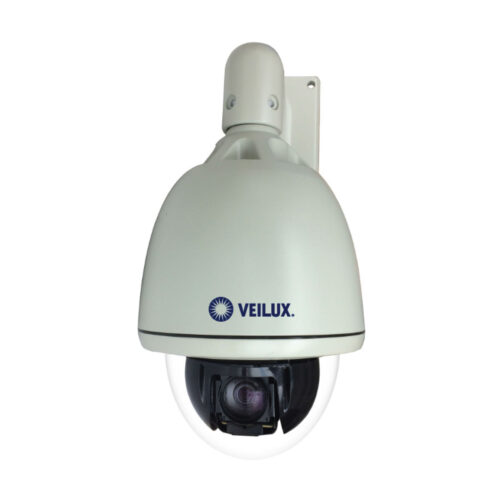

Veilux VP-FDNC36X High Speed Dome PTZ Camera

  • 1/4 type EX view HAD CCD
  • Supports Pelco-D or Pelco P protocol
  • OSD adjustment of ID, Baud Rate and Protocol
  • 36X Optical Zoom, 12X Digital Zoom (432x with optical zoom)
  • 530 TV Lines High Horizontal Resolution
  • RS485 interface

$0.00

The Veilux VP-FDNC36X PTZ Camera features a progressive scan ExView HAD CCD sensor with a 36x optical zoom lens. Additionally, the surveillance camera operates over a 24VAC power supply for a secure and reliable connection. 360-degree continuous pan allows for a complete view over your surveillance location. Further, the security camera is IP66-rated weather resistant for safe outdoor uses.

Features:

  • 1/4 type EX view HAD CCD
  • Supports Pelco-D or Pelco P protocol
  • OSD adjustment of ID, Baud Rate and Protocol
  • 36X Optical Zoom, 12X Digital Zoom (432x with optical zoom)
  • 530 TV Lines High Horizontal Resolution
  • RS485 interface
  • 128 preset positions and 8 preset groups
  • Built-in Heater and Fan, IP66 for outdoor
  • AC24V power supply, wall mount bracket or pendent bracket
  • Super Wide Dynamic Range
  • Provides quick and accurate surveillance by allowing users to quickly pan, tilt and zoom
SKU: VP-FDNC36X Categories: , , Tags: , , , ,
Weight 3 lbs
Camera Type

Cameras Signal Type

Analog
Resolution

>530TVL
Lens Type

Motorized / Varifocal
IP Rating

VIDEO
Image Sensor ¼” Ex-View HAD CCD
Effective Pixels Approx. 440,000 pixels


Lens

 36x optical zoom, f=3.4 mm (wide) to

122.4 mm (tele), F1.6 to F4.5
Digital Zoom 12x (432x with optical zoom)
Viewing Angle (H) 57.8° (wide end) to 1.7° (tele end)
Minimum Working Distance 320 mm (wide end) to 1,500 mm (tele end)
Sync system Internal/External (V-Lock)


Minimum illumination

 “1/60 s mode: 1.4 lx (typical) (F1.6, 50 IRE). 1/4 s mode: 0.1 lx (typical) (F1.6, 50 IRE)”
S/N ratio More than 50 dB
Horizontal Resolution >530TVL
Electronic Shutter 1/1 to 1/10.000 s, 22 steps
White Balance Auto, ATW, Indoor, Outdoor, One-push, Manual
Gain Auto/Manual (-3 to 28 dB, 2 dB steps)


AE Control

 “Auto,Manual,Priority mode (shutter priority & iris priori- ty),Bright,EV

compensation,Back light compensation,Slow AE”
Wide Dynamic Range On/Off
BLC On/Off


Focusing System

 Auto (sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF
Picture Effects E-Flip, Nega Art, Black & White, Mirror Image
IR Cut Filter Removal Auto ICR
MECHANICAL
Panning Range 360° continuous
Tilting Range 0° ~ 90° (Auto flip)
Motors Stepping motors
Pan / Tilt Accuracy <0.1°
Pan Manual Speed 0.1° ~ 180°/s
Tilt Manual Speed 0.1° ~ 120°/s
Preset Speed 300°/s
Communication RS485
Communication Protocol Pelco-D, Pelco-P, Factory, etc.
Baud Rate 1200/2400/4800/9600bps
Address Setting 1~255
Preset Position 128
Cruising Tracks 8 groups with 16 preset positions
GENERAL
Power Supply AC24V/3A
Weight 6.0kg (N.W.)/7.0kg (G.W.)
Dimension 201*201*342mm (no include bracket)
Operating Temperature -40°C ~ +60°C
Operating Humidity 0 – 90%
Bracket Wall mounting bracket or Pendent mounting bracket
Protection Rate IP66

VP-FDNC36X Spec Sheet

Download
