VR-HYBRID-Mobile-4H-GFW
,

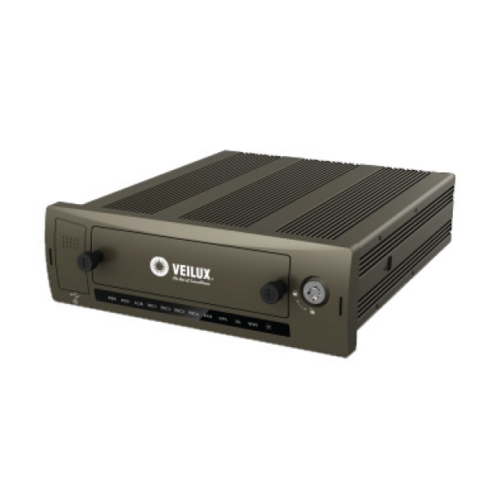

Veilux VR-HYBRID-Mobile-4H-GFW 4CH Mobile DVR

Availability:

In stock
  • 4 CH 1080P resolution real-time recording
  • Penta-brid (HDCVI/AHD/TVI/CVBS/IP) video input
  • H.265/smart H.265 video compression
  • VGA/TV simultaneous video output
  • 1 HDD and 1 SD card
  • Supports face detection

$1,000.00

In stock

VR-HYBRID-Mobile-4H-GFW is the new generation of mobile video recorder, it uses H.265 technology which, lowers the transmission bandwidth and saves on storage space. It supports 1080P high-definition real-time recording, real-time vehicle location tracking and monitoring and face detection. Information such as GPS and video can be uploaded via a wireless network (3G/4G/WIFI). It has already passed EN50155/ISO16750 in order to meet the requirements of mobile use. This device can be used in many kinds of solutions for different applications.

Features:

• Penta-brid (HDCVI/AHD/TVI/CVBS/IP) video input
• H.265/smart H.265 video compression
• 4 channels @ 1080P real-time recording
• VGA/TV simultaneous video output
• Support 1 HDD and 1 SD card
• Support face detection
• Aviation connectors adopted
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

ANTI-VIBRATION
Using shock-absorbing material and structure, the new designed hard disk box can cope with varying degrees of vibration, keeping the system working normally.

WIDE RANGE OF POWER SUPPLY
The wide range of power supplies can protect the device as the voltage output of vehicle battery changes during driving.

GPS
Embedded GPS module can receive location information and upload to VMS. Even when the device is offline, it can upload the information after its online again and the vehicle can be tracked on the electric map of VMS.

MULTIPLE PORTS
With kinds of ports, like RS232, RS485, I/O, the video recorder can connect with various of accessories, such as card reader, fuel sensor, panic button and so on, so that the video, audio, alarm and location information can be uploaded to VMS.



SKU: VR-HYBRID-Mobile-4H-GFW Categories: , Tags: , , , , , , , , , , , ,
Weight 4.23 lbs
Recorder Type

Mobile Video Recorder
Number of Channels

4 Channels
Input Signals

5-in-1 (TVI, AHD, CVI, Analog SD, IP)
Hard Drive Capacity

1 HDD
SYSTEM
Main Processor Embedded microprocessor
Operating System Embedded LINUX
AUDIO AND VIDEO
Input 4 channels HDCVI/AHD/TVI/CVBS (Does not support audio in AHD/TVI cameras) + 4 channel 4MP IPC
Two-way Talk 1 channel Input, 1 channel Output
DISPLAY
Interface 1 VGA, 2 TV
Resolution 800 x 600
Display Split 1/4/8/9
Privacy Masking 4 rectangular zones (each camera)
OSD Channel name, time, GPS, license No.
RECORDING
Audio Compression H.265/smart H.265 /H.264/smart H.264
Record Rate G.711A/G.711U/PCM
Bit Rate 4 ch@1080P real-time recording
Record Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post- record: 10~300 sec
VIDEO DETECTION AND ALARM
Trigger Events Recording, PTZ, Tour, Alarm, Email, FTP, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396 (PAL:22×18, NTSC:22×15), Video Loss & Tampering
Alarm Input 9CH, Alarm1–8 are local alarm input, Alarm 9 is pulse input.
Relay Output 2 channels,1 relay out, 1 Controllable 12V out
PLAYBACK AND BACKUP
Playback 1
Search Mode Time/Date, Alarm, Motion Detection & Exact search (accurate to second)


Playback Function

 Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/Network
STORAGE
Internal HDD 1 HDD
SD Card 1 SD card, Up to 256 GB
NETWORK
Ethernet 1 RJ-45 Port (10/100Mbps) and 1 6-pin aviation connector
Wireless Network Built-in 3G/4G/Wi-Fi module(optional)
GPS Built-in high accurate GPS module(optional)
Network Function TCP/IP, UDP, DHCP, DDNS, FTP, Email, Alarm Server
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
AUXILIARY INTERFACE
USB 3 USB 2.0
RS232 2 Ports
RS485 1 Port
Heater Optional
ELECTRICAL
Power Supply DC 6V~36V
Power Consumption <8.4W (Without HDD)
ENVIRONMENTAL
Operating Temperature -30°C (with heater)~ +70°C (-22°F ~ +158°F)
Operating Humidity 10 ~ 90% RH
CONSTRUCTION
Dimensions 180mm×190mm×50mm (7.0″ x 8.7″ x 2.0″)
Net Weight (without HDD) 1.92Kg (4.23 lb) (without HDD)
Gross Weight 2.83Kg (6.24 lb)
CERTIFICATIONS
CE FCC
EN50155 ISO7637-2
ISO16750 BIS

VR-HYBRID-Mobile-4H-GFW
