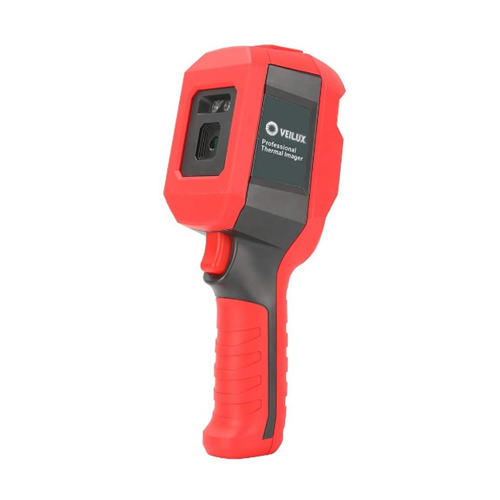

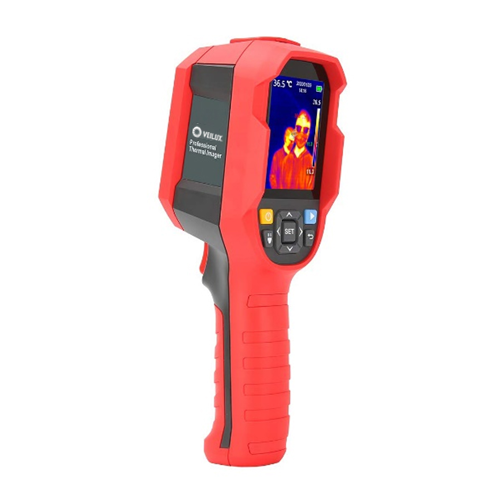

VTHPH-1612 Portable Thermal Imager

  • 2.8” TFT screen
  • Infrared resolution: 160×120
  • Frame frequency: 9Hz
  • Range of temperature measurement: 30˚C~45˚C
  • Accuracy: ±0.5˚C

The dual-view/dual-spectrum infrared body temperature rapid screening instrument is mainly developed based on the principle of infrared thermal radiation. It uses a non-refrigerated core and low signal-noise image processing technology. It is a non-contact, real-time, continuous and accurate Temperature measuring equipment. At the same time, a dedicated software system can be used to visually display the temperature information of the temperature measurement objects. It can be used for entry-exit health quarantine at customs, airports, stations, terminals, land ports, and epidemic prevention in key places such as schools, hospitals, office buildings Control scenes are widely used.

Features:

  • 2.8” TFT screen
  • Infrared resolution: 160×120
  • Frame frequency: 9Hz
  • Range of temperature measurement: 30˚C~45˚C
  • Accuracy: ±0.5˚C
  • Photographed function and SD card storage
  • PC software analysis
  • Point temperature measurement
  • Type-C USB interface for lithium battery charging
  • 1/4” tripod mounting hole

Specifications:

Sensor Uncooled focal plane
Temperature Range 30°C- 45°C
Resolution 0.1°C
Accuracy ±0.5°C@1M
Minimum Measuring Distance 15cm
Temperature Measurement Response Time ≤500ms (95% of reading)
Thermal Imaging Pixel 19200 (160 x 120)
Pixel Size 12μm


Swatch

 Black white, red white, blue white, iron red, rain- bow
Bandwidth Of Infraed Spec- troscopy 8 – 14μm
Field Of View (Fov) 56°(H) x 42°(V)
Instantaneous Field Of View (If0v) 6mrad
Thermal Imaging Sensitivity < 50mk
Frame Rate <9Hz


Temperature Display

 Center temperature measurement and high tem- perature tracking (default)
Image Format BMP
Image Modes Thermal imagery


Temperature Measuring Point

 Besides central point, 3 temperature measuring

points can be added
Display Resolution 320 x 240
Pc Analysis Software (Pc) Yes
Data Communication Type C USB


Auto Power Off

 Selectable (5min, 10min, 30min), 30min auto power off (default)
Service Time ≥6 hours
Charging Time 4 hours
Image Storage Micro SD card
Power A single Li-ion 3.7V/5000mAh 26650 battery
Display 2.8” TFT LCD
Product Color Red & grey
Storage Temperature -20-60°C (-4-140°C)
Operating Temperature 10-40°C (50-104°C)
Working Humidity <90%RH (Non-condensing)
Product Size 236mm x 75.5mm x 86mm
Standard Accessories Manual, Type C USB cable, 16GB TF card
