VV-2HDIR21-CVI-Mobile 2MP HDCVI IR Eyeball Mobile Camera
, , ,

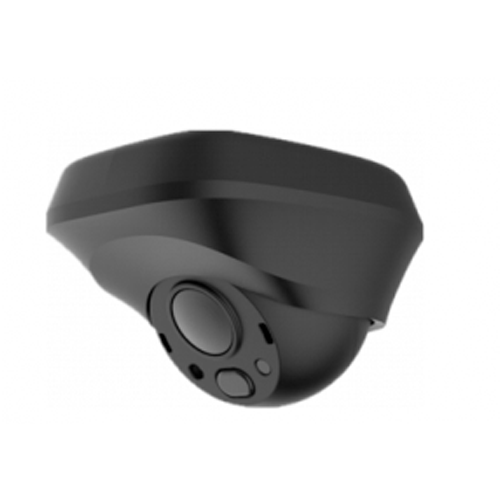

Veilux VV-2HDIR21-CVI-Mobile 2MP HDCVI IR Eyeball Mobile Camera

Availability:

In stock
  • Max 30fps@1080P
  • HD and SD output switchable
  • 2.1mm fixed lens
  • Built-in Mic
  • Max. IR length 3m, Smart IR
  • DC12V

$0.00

In stock

The Veilux VV-2HDIR21-CVI-Mobile Eyeball Camera features a progressive scan CMOS with a 2MP lens capable of recording footage in 1920 x 1080 resolution. Additionally, the surveillance camera utilizes Smart IR LEDs to capture clear footage at nighttime and during low lighting conditions. An IP67 rating ensures the camera is safe for outdoor use and installation in wet environments. Further, the security camera incorporates 2D noise reduction for clear footage.



SKU: VV-2HDIR21-CVI-Mobile Categories: , , ,
Weight 0.187 lbs
Camera Type

Cameras Signal Type

Analog
Resolution

2MP
Lens Size

2.1mm
IP Rating

Camera



Image Sensor 1/2.7″ CMOS
Effective Pixels 1920(H)×1080(V), 2MP
Scanning System Progressive


Electronic Shutter Speed

 PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
Minimum Illumination 0.02Lux/F2.0 , 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 3m (9feet)
IR On/Off Control Auto/Color/B/W
IR LEDs 1

Lens



Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 2.1mm
Max Aperture F2.0
Angle of View H: 139°
Focus Control N/A
Close Focus Distance

400mm(15.75″)

DORI Distance



Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
  DORI

Definition

 Distance


Detect

 25px/m (8px/ft)

35.5m(116.5ft)


Observe

 63px/m (19px/ft)

14.2m(46.6ft)


Recognize

 125px/m (38px/ft)

7.1m(23.3ft)


Identify

 250ppm (76px/ft)

3.5m(11.5ft)

Pan / Tilt / Rotation



Pan/Tilt/Rotation

 Pan: 0° ~ 40°

Tilt: 0° ~ 55°

Rotation: 0° ~ 360°

Video

Resolution 1080P (1920×1080)
Frame Rate PAL:1920×1080@25fps, 1280×720@25/50fps; NTSC:1920×1080@30fps, 1280×720@30/60fps
Video Output 1-channel BNC HDCVI high definition video output (Aviation connector)
Day/Night

Electronic
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR DWDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto / Manual
Smart IR Auto / Manual

Certifications

Certifications CE FCC

Interface

Audio Interface Built-in Mic
Aviation Connector Interface 1- power
2- video ground
3-power ground
4-video

Electrical

Power Supply 12V DC ±25%
Power Consumption Max 1.5W (12V DC, IR on)

Environmental

Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH

* Start up should be done at above-40°C (-40°F)
Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Ingress Protection & Vandal Resistance

N/A

Construction

Casing Plastic
Dimensions 71.6mm×60.9mm×45.9mm (2.82″×2.4″×1.8″)
Weight 0.085kg (0.187lb)

VV-2HDIR21-CVI-Mobile Spec Sheet

Download
