VVIP-2V-H5 Dome Camera

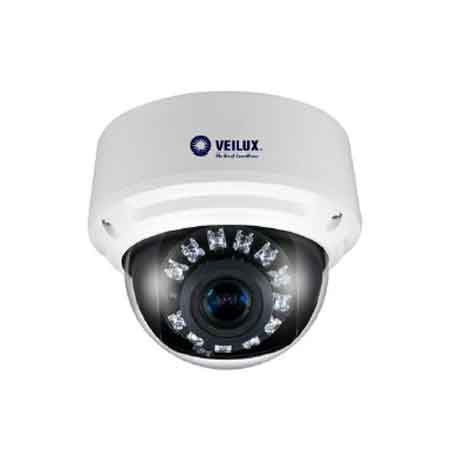

Veilux VVIP-2V-H5 Starlight Network Dome (DISCONTINUED)

Availability:

Out of stock

Key Features:

  • 1/2.8″ Progressive Scan CMOS
  • VF Lens 2.7-12mm
  • 50fps/60fps@1080P(1920*1080)
  • Triple Streams
  • Smart IR Up to 30m
  • Low bitrate, Excellent low-light performance
  • WDR, 3D DNR
  • ROI, Defog, HLC, Corridor mode, DIS
  • IP67, IK10a

$580.00

Out of stock

The Veilux VVIP-2V-H5 Starlight Network Dome features a progressive scan CMOS with a 2MP lens capable of recording footage in 1920 x 1080 resolution at 60 frames per second. Additionally, the surveillance camera utilizes Smart IR to capture clear footage at nighttime and during low lighting conditions out to 30 meters. IK10 vandal resistance ensures the camera is safe from physical impacts. Further, the security camera incorporates triple stream compression to efficiently transmit and store data by reducing bandwidth. Wide dynamic range delivers crisp and clear footage in environments with harshly contrasting lighting conditions.

Features:

  • 1/2.8″ Progressive Scan CMOS
  • VF Lens 2.7-12mm
  • 50fps/60fps@1080P(1920*1080)
  • Triple Streams
  • Smart IR Up to 30m
  • Low bitrate, Excellent low-light performance
  • WDR, 3D DNR
  • ROI, Defog, HLC, Corridor mode, DIS
  • IP67, IK10a



SKU: VVIP-2V-H5 Category: Tags: , , , , , ,
Weight 1.98 lbs
Camera Type

IP Rating

IR Lighting Distance

Lens Size

2.7-12mm
Lens Type

Varifocal/Manual
Resolution

2MP
Cameras Signal Type

IP (Network)
Camera
Image Sensor 1/2.8” Progressive Scan CMOS
Min. illumination Color:0.001Lux@(F1.2,AGC ON) ;B/W:0Lux@(IR LED ON)
Day & Night ICR
Shutter Speed 1/5s-1/20000s
Auto Iris Yes
Wide Dynamic Range WDR>120dB
Digital Noise Reduction 2D/3D
Lens 2.7-12mm VF Lens
FOV 105°~ 35°
IR LED 12pcs
IR Range Up to 30m
Video Compression H.264/265, MJPEG
Bit Rate (CBR/VBR) Main stream:500kb-12000kb ;Sub stream 100kb-6000kb
Audio Compression G.711 ,RAW_PCM
Max. Resolution 1920×1080/60fps
Stream Stream1 1920×1080/1280×720 Stream 2 D1 to QVGA

Stream 3 1920×1080/1280×720/D1/VGA/640×360/CIF/QVGA
Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness
HLC/BLC Yes
9:16 Corridor Mode Yes
DIS Auto
AWB Yes
ROI/Defog Yes
Network
Network Protocols: IPv4,802.1x,HTTP,HTTPS,TCP/IP,UDP/IP,RTSP,DHCP,NTP, RTCP/RTP,

PPPoE, SMTP, DNS, UPnP, FTP, ICMP ,IGMP, Unicast and Multicast
Alarm Trigger Perimeter ,Single Virtual Fences ,Double Virtual Fences ,Loiter ,Multi Loiter , Object Left ,Object Removed, Abnormal Speed ,Converse, Illegal Parking ,Signal Bad , Motion Detection, Network disconnect, Disk alarm, I/O alarm
RTSP Video Standard RFC2326, Support QuickTime / VLC Player.
Security User security authentication, Reset, Hardware Watch Dog
Web Language English, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian
System Compatibility Onvif
Interface
Ethernet 1 Ethernet (10/100 Base-T) RJ-45 Connector
Audio I/O 1ch Audio In&1ch Audio Out
Alarm I/O 1ch Alarm In&1ch Alarm Out
RS485 Yes
BNC Output Yes
Reset Button Yes
Edge Storage Micro SD/SDHC/SDXC slot ,Max 128GB
General
Power Supply DC12V/POE/AC24V
Power Consumption 3W (IR LED OFF); 5W (IR LED ON)
Operating Temperature Starting Temperature: -30 ° C~ 60 ° C (-22 ° F ~ 140 ° F) Working Temperature:-40 ° C ~ 60 ° C (-40 ° F ~ 140 ° F)
Operating Humidity 0% – 90% RH
Ingress Protection IP67,IK10
Certificates CE / FCC
Product Dimensions φ130× 112mm
Product Weight 900g

VVIP-2V-H5 Spec Sheet

Download
